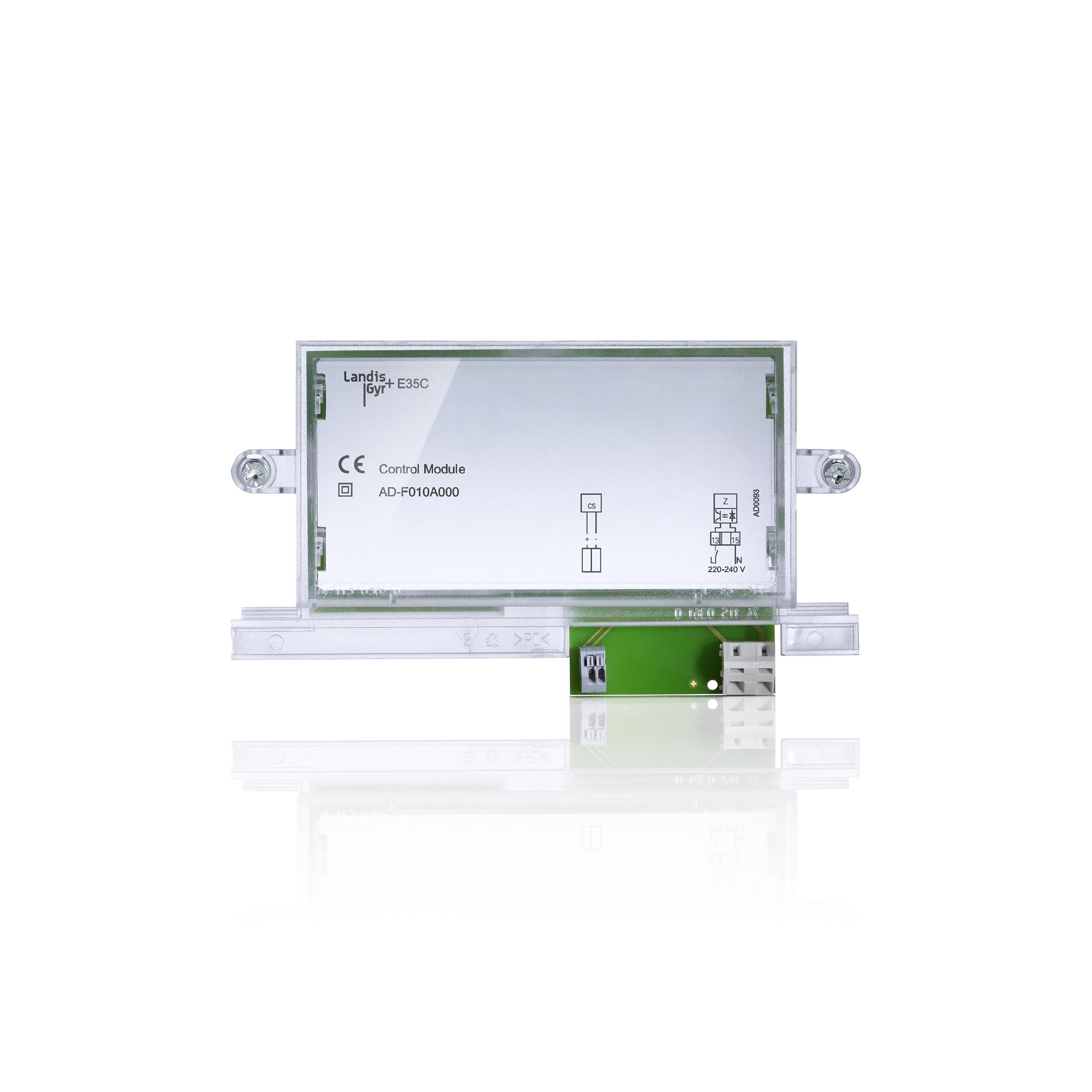

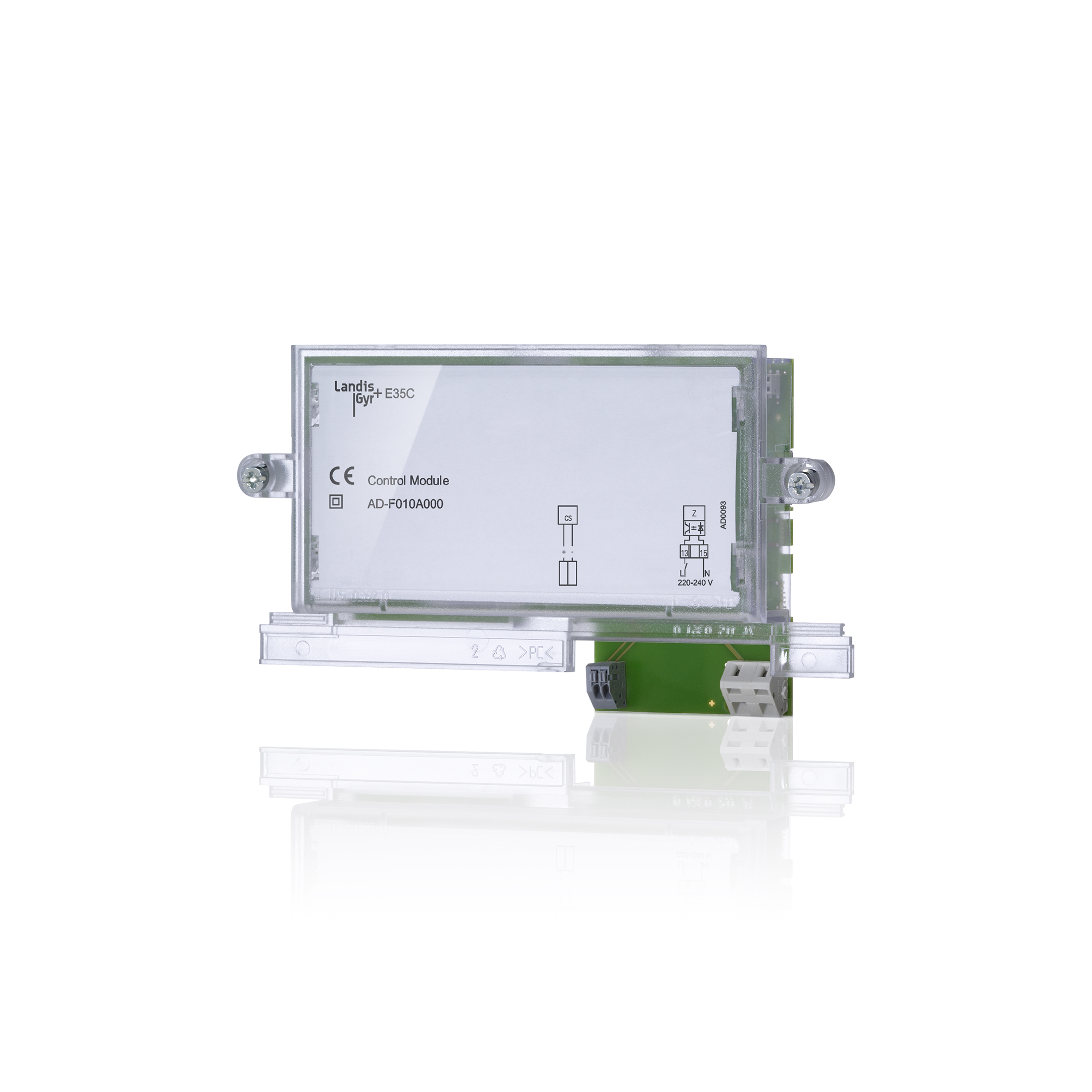

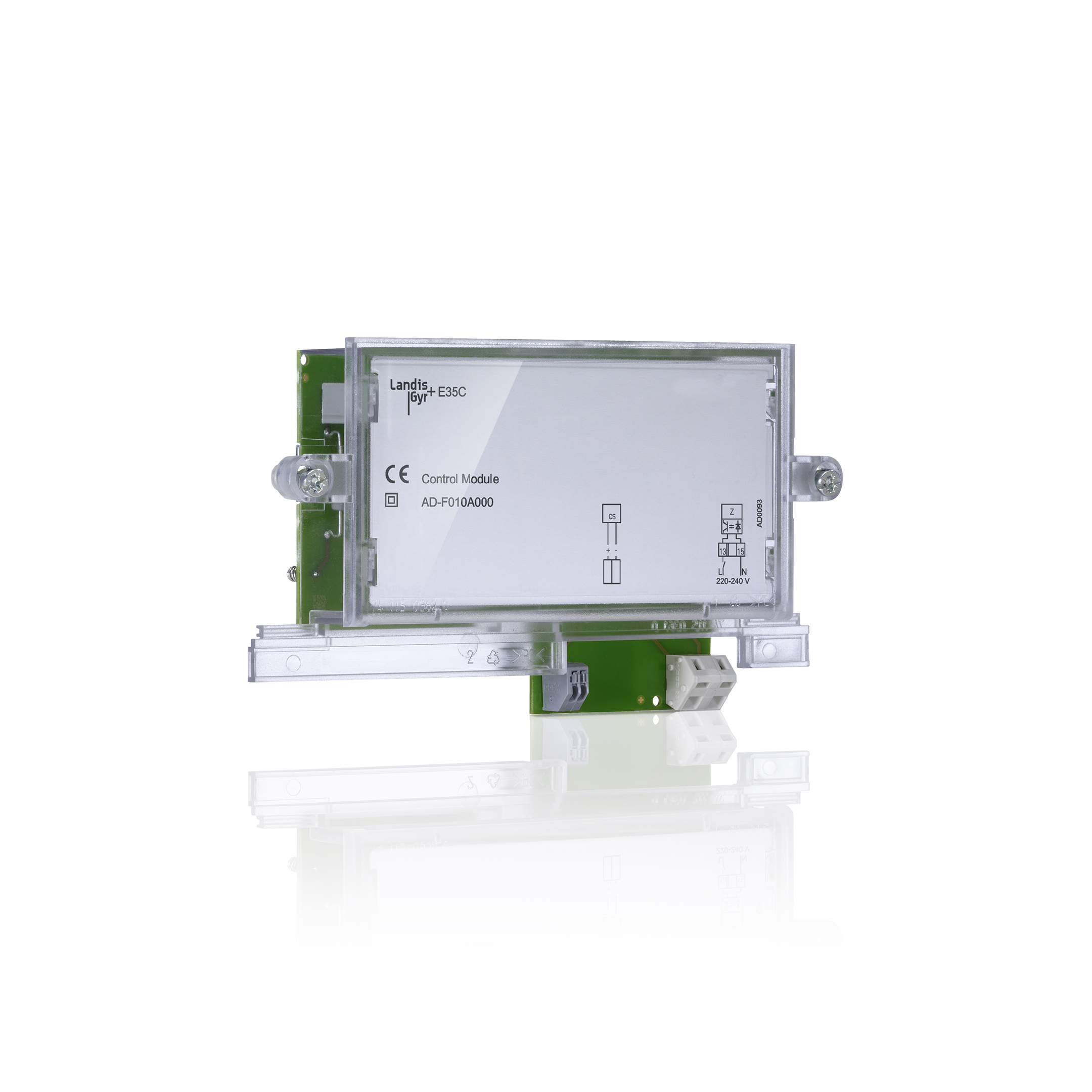

Landis+Gyr E35C
The E35C communication module has been designed to meet the latest smart metering requirements, building on the flexibility of Landis+Gyr’s E350 meters and modules. The E35C supports a multi-energy AMI solution and can be connected to up to four gas, heat and water meters through M-bus, making them accessible from a central station. Lire la suite…
Fonctions
- Supported by Landis+Gyr’s Gridstream solution
- Runs on communication technologies such as cellular 2G/3G, PLC (Power Line Carrier) and Ethernet
- Connects to up to four multi-energy devices via M-Bus
- Enables personal energy management through a standardized interface
- Features advanced time-of-use tariffication and load profiles
- Firmware updated during operation via DLMS protocol over any external communication channel
- Disconnect capabilities to connect or disconnect the electricity network of the consumers at their premises
- Fraud detection via an anti-tampering kit against strong magnetic fields and terminal cover removal.
- Ability to monitor power quality
- Supports a future orientated smart metering system including meters, concentrators, remote data acquisition and data evaluation in the central station
Variantes
- E35C variants with 2G/3G communication, Ethernet and PLC
- E35C tariff control Module for standalone operation of the E350 meter enabling tariff switching (NT/HT)
Availability
- Europe, the Middle East and Africa
