Description:

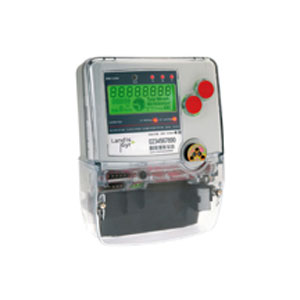

The EM5300 current transformer meter is a high accuracy meter with complete feature set for energy and quality of supply monitoring and data recording.
Applications
The EM5300 meter simplifies meter asset management and reduces your inventory requirements by allowing one meter to be installed in the 6 most common CT metering applications. The EM5300 will become the essential meter in your energy management package offering features including:
- Software selectable for 3P3W or 3P4W applications
- Wide 1-10 Amp current range for both 1ACT & 5ACT installations (5-20 Amp version available)
- Extended voltage range of 46-288P-N, 80-500P-P
Advanced energy analysis and management
The advanced measurement and analysis capabilities of the EM5300 deliver crucial decision making tools to your energy management team. With a broad range of energy measurement features, the EM5300 meter contributes to more efficient energy management by providing:
- Comprehensive measuring quantities including kWh, kVARh, and kVAh (import/export/per phase/per quadrant) plus pulse inputs selectable in 8 energy & 4 demand (up to 8 rate TOU) registers
- Up to 12 load profile channels (2 separately secure groups of 6 channels) with interval length & memory allocation user selectable per channel
- Quality of supply registers for voltage, current, power factor, total harmonic distortion, neutral current & frequency
- Primary rating capable for CT/VT ratios & correction factors
- Programmable load control (by quantity, threshold or TOU) for external equipment energy management
Cost-effective communications options
The EM5300 meter guarantees cost effective monitoring and precise control of meter installations by utilizing advanced data compression protocols and remote communications technology to deliver functionality including:
- Large easy-to-read backlit LCD display (LCD is readable during power outage – optional)
- Programmable display screen plus 2 alternate screens for over 2,000 selectable display items
- Optical, RS232 and RS485 (optional) communication ports with modem interfaces including GSM and CDMA
- Daily power cycle for resetting communications devices
- EMPro HHU, EMPWin and Itron compatibility
Advanced design for performance and longevity
A breakthrough in user-friendly energy metering and demonstrating remarkable durability under harsh conditions, the EM5300 meter meets or exceeds all international design requirements. The EM5300 is a reliable investment in advanced 3-phase metering & incorporates significant design features including:
- Lower installation costs by maintaining the Landis+Gyr footprint (SDM, Q3,Q4)
- Convenient 3-position top mounting bracket and carry handle
- Reliable security with all data saved into non volatile memory and 3 levels of encrypted password protection plus lockout function
- 10kV lightning withstand, IP53 enclosure rating and EMC conformance to all IEC
Accessories
- GS53 Under terminal cover GSM Modem
- ML53 Under terminal cover multi-drop RS485 interface board with modem port
- TC53 Under terminal cover TCP/IP interface board
- DM1 Stand-alone GSM modem
- CM1 Stand-alone CDMA modem
